sell oilfield equipment XJ600 Workover Rig

Product Categories

Dongying Kangdi Mechanical Equipment Co.,LTD

Contact Now

sell oilfield equipment XJ600 Workover Rig

Brand Name : new

Model Number : new

Certification : new

Place of Origin : china

MOQ : 1pc

Price : EXW200000USD-300000USD

Supply Ability : 100pcs/month

Delivery Time : 30 work days

Packaging Details : wooden box

Contact Now

Detailed Product Description

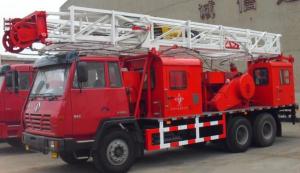

XJ600 workover rig is truck-mounted service equipment, it adopts the second-class chassis, it is equipped with auxiliary frame, P.T.O, hydraulic torque converter, drawworks drum and its brake system, angle gear box, two section telescopic mast, traveling system and weight indicating equipment, air and electric system which is controlled by driller, etc.

1) The engine power configuration is reasonable, the trip up and down speed is quick, the work efficiency is high. 2) In the transmission system, the hydraulic torque converter makes the transmission stable and flexible, and it can be adjusted steplessly, the using rate of engine power is high. 3) The drum adopts double-end input clutch, it can realize the reverse rotation, it is benefit for the falling of the hook. 4) The mast is pneumatic load-bearing type, the structure is steady, the using is safe and convenient.

Product model	ZYT5231TXJ ZYT5231TXJ workover rig
Chassis type	6×4 second-class chassis
Workover depth (2 7/8″upset tubing) m	2600
kN Nominal hook load	300
kN Max. hook load	585
Dia. of rope mm / Effective number of rope n	φ22/6
Mast height	18
Outside dimension when moving (including mast) mm	10590×2490×3950
kg Curb weight	22770

Wholesale sell oilfield equipment XJ600 Workover Rig from china suppliers

sell oilfield equipment XJ600 Workover Rig Images
